DE

DE
Description

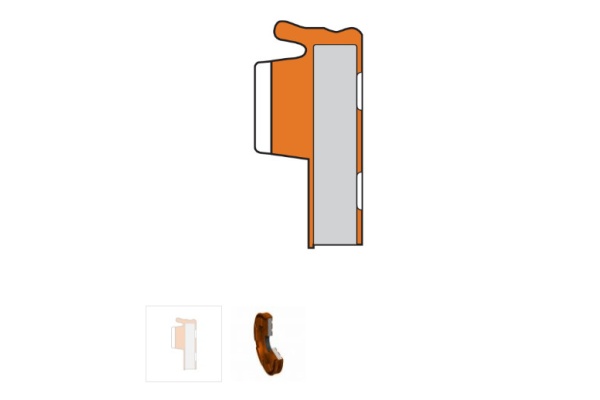

Description DE are U-ring type piston seals with asymmetrical rubber lips. Application Shock absorbersDistributorStandard cylinders Materials NBR 75NBR 80FKM 80

TECHNICAL DATA

Temperature	-30°C/+150°C
Pressure	1.6 MPa
Speed	1 m/s
Medias	Lubricated air Oil-free air Non-aggressive gases

MATERIALS

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance	Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max)
Compatibility issue	Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents
Temperature range	-30°C/+100°C

FKM

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

Chemical resistance	Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils. Fire-resistant liquids (HFD) Silicone oils and greases Mineral and vegetable oils and greases Aliphatic hydrocarbons (propane, butane, petroleum) Aromatic hydrocarbons (benzene, toluene) Chlorinated hydrocarbons (trichlorethylene) Fuel (including high alcohol content) Atmospheric and ozone agents
Compatibility issue	Glycol-based brake fluids Ammonia gas Organic acids with a low molecular weight (formic and acetic acids)
Temperature range	-20°C/+200°C
